CÁP MẠNG DINTEK

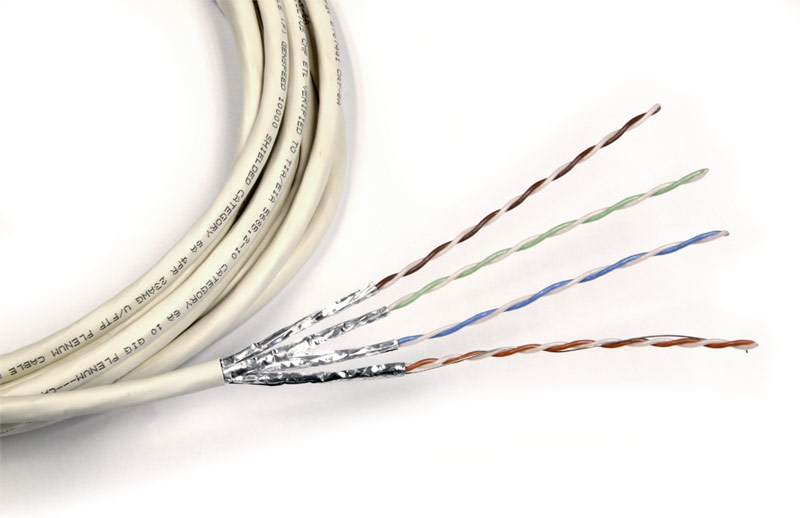

Cáp Mạng Dintek CAT.6A 4 pair (thùng 305m)

Features And Benefits

■ Shielded design allowing for maximum pair separation, increasing key electrical performance parameters
■ Individual pair shielding for EMI protection
■ Typical positive PSACR beyond 500 MHz for increased available bandwidth
■ TRU-Mark® print legend contains footage markings from 1000' to 0' Applications
■ IEEE 802.3an: 10G BASE-T (10 Gigabit Ethernet) supporting 100 meters
■ 1000 BASE-TX (Gigabit Ethernet)
■ 2.4/1.2 Gb/s ATM

Standard Compliances

■ ANSI/TIA/EIA 568 C.2
■ ISO/IEC 11801 Ed. 2.0 (Class E)
■ ICEA S-102-700 (Category 6)
■ NEC/CEC Type CMR (UL 1666) for Non-Plenum
■ NEC/CEC Type CMP (NFPA 262) for Plenum
■ RoHS Compliant Directive 2002/95/EC
■ UL 444

Product Features

Construction

Conductors: 23 AWG solid bare annealed copper

Insulation:
Non-Plenum HDPE
Plenum Foamed Fluoropolymer

Shield
Each pair is individually shielded with an aluminum foil
24 AWG drain wire

Jacket
Non-Plenum: Flame-Retardant PVC
Plenum: Low-Smoke, Flame-Retardant PVC

Color Code
Pair1: Blue-White
Pair 2: Orange-White
Pair 3: Green-White
Pair 4: Brown-White
